Mini Climbing Pyramid
Equipment height
3.00 m
Space requirement
Ø 3.50 m
Safety zone
legally required Ø 8.00 m, recommended Ø 10.00 m
Min. fall protection
50.20 m²
Height of fall
2.00 m
Concrete necessary m³
1.20 m³
Recommended minimum age
for children over the age of 3
Number of user
15
Standards and Rules
EN 1176
Mini Climbing Pyarmid
Article No. 20.01.070
Steel Post comes galvanised finish
*Powder Coating Options Avaliable on Request*
Our HUCK rope play equipment is characterized by versatility and quality.
Available Rope Colours:
- Orange, Turquoise, Green, Yellow, Blue, Pink, Red, Grey, Rust, Hemp, Black or a Combination.
You can also choose from different plastic adapter colors. Each piece of equipment can be color-matched to meet almost any customer's needs.

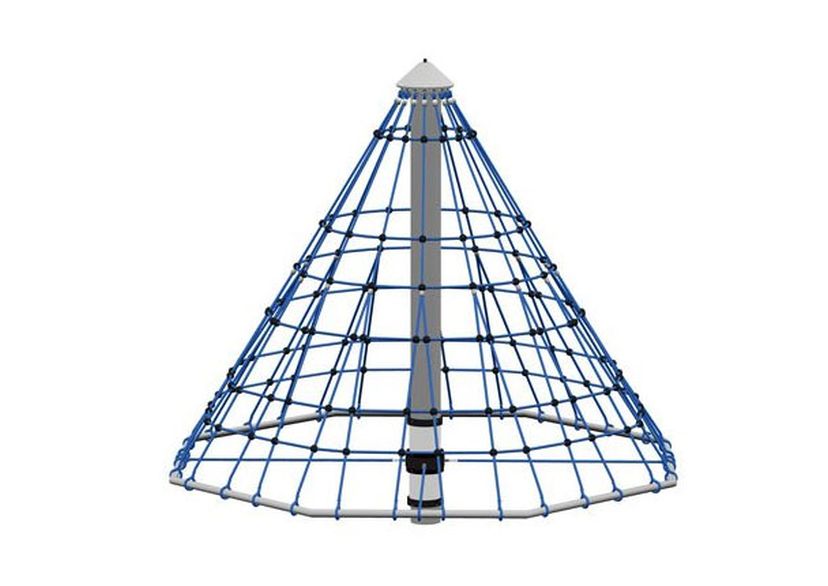

Equipment: 1 steel mast (Ø 200 mm), length 3.80 m, with PA mast protector, Ropes and nets made of Hercules rope (Ø 16 mm, 6-strand, with steel core).
Properties
Article number
20.01.070S
Equipment height
3.00 m
Space requirement
Ø 3.50 m
Safety zone
legally required Ø 8.00 m, recommended Ø 10.00 m
Min. fall protection
50.20 m²
Height of fall
2.00 m
Concrete necessary m³
1.20 m³
Recommended minimum age
for children over the age of 3
Number of user
15
Standards and Rules
EN 1176
